Description
PRODUCT OVERVIEW

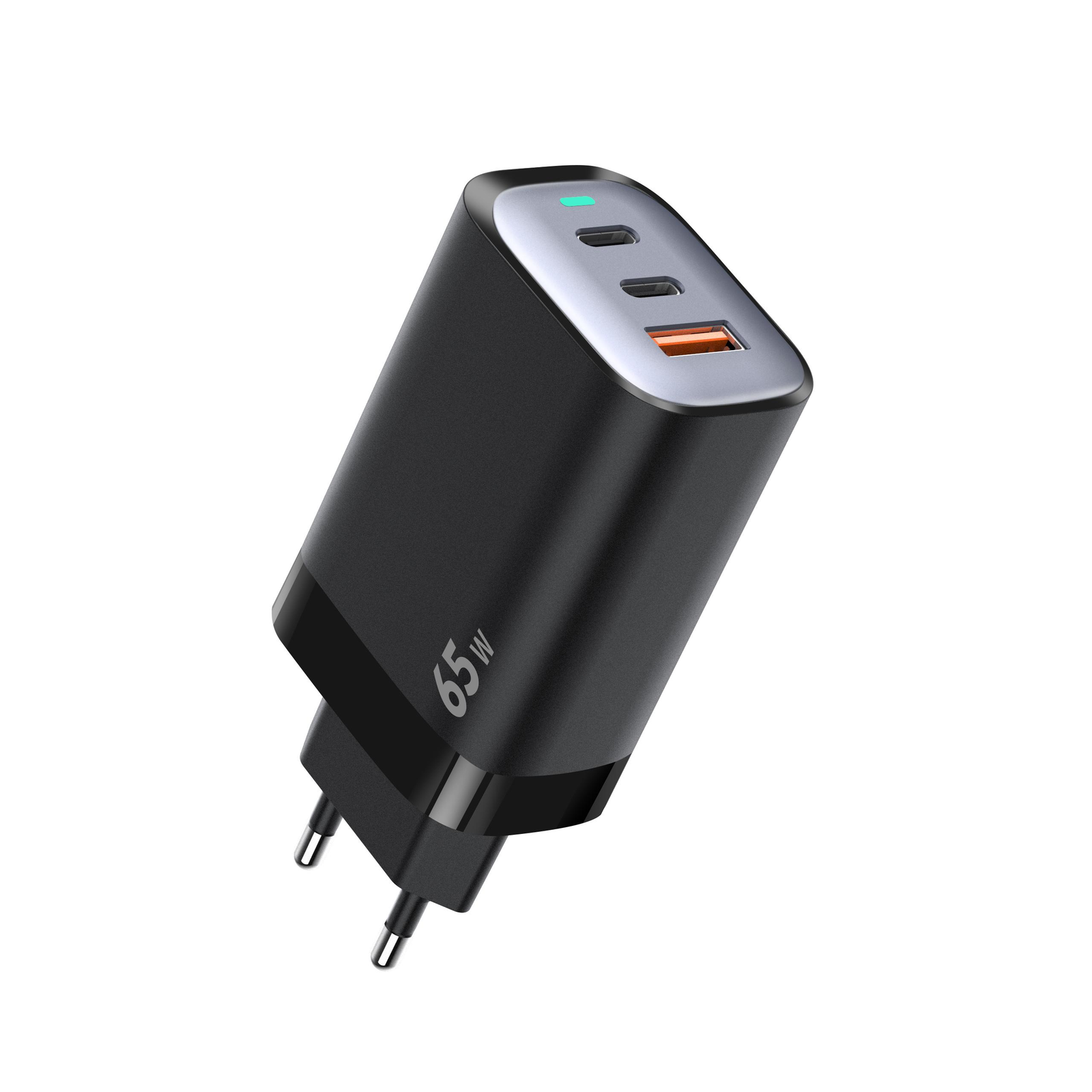

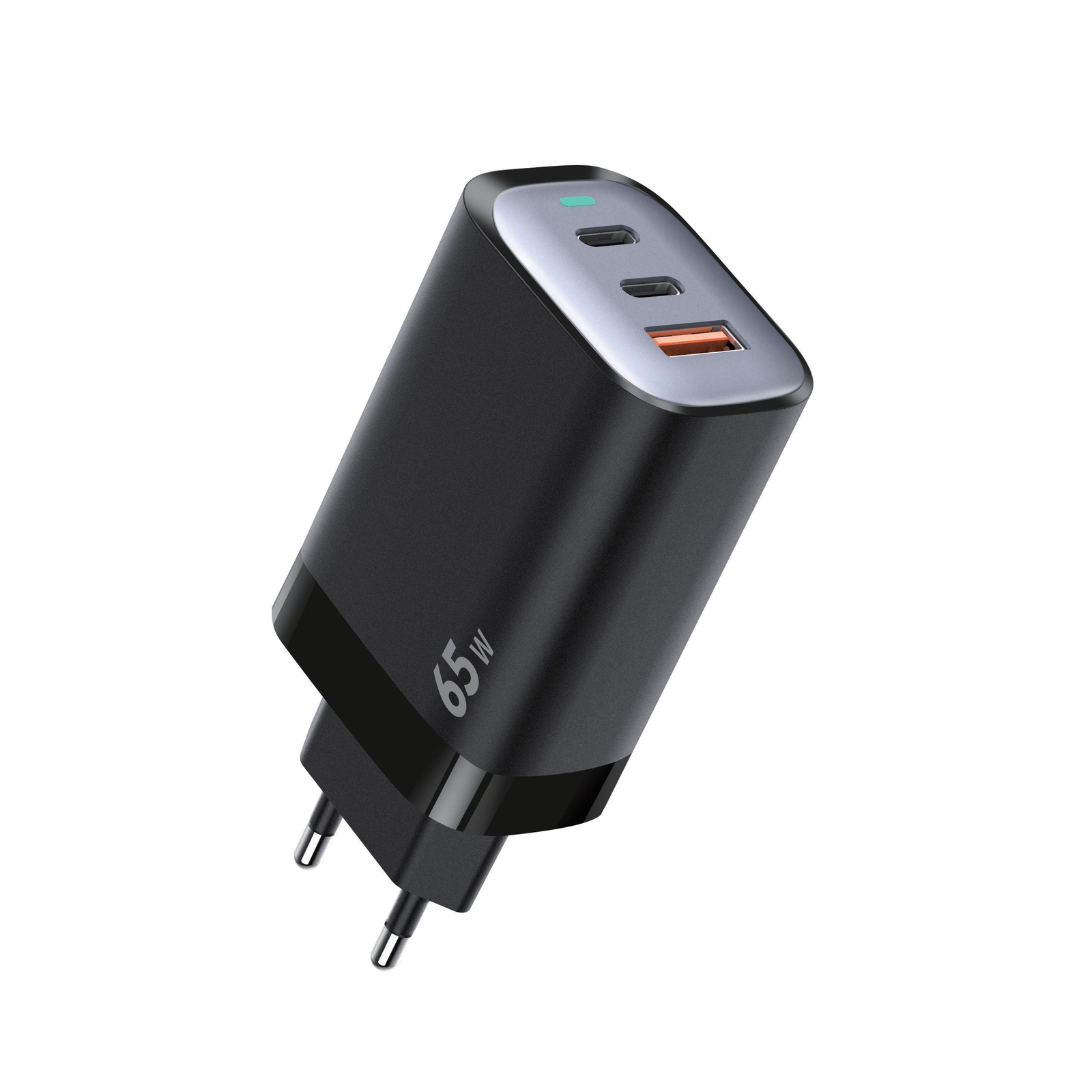

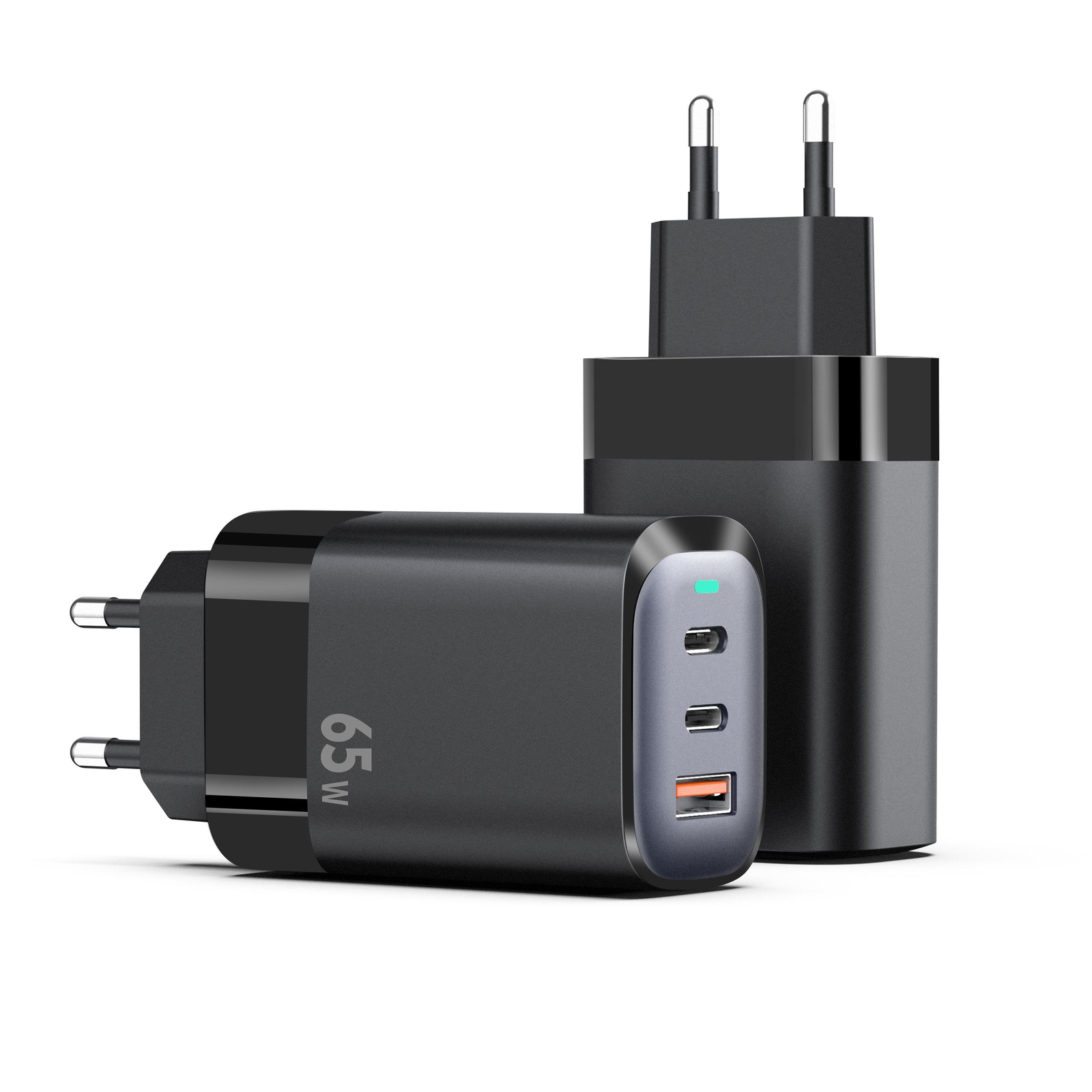

The CH104 65W-2C+1A is a wall charger for brands, importers, distributors, wholesalers and retail accessory programs. The specification below follows the supplied product data.
KEY FEATURES
- Power: 65W
- Port Configuration: 2 x USB-C + 1 x USB-A
- Input: AC110-240V~50/60Hz,1.5A Max
- Output: USB-C1/C2:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65Wmax)
USB-A:5V/3A,5V/4.5A,9V/3A,12V/3A (36Wmax)
USB-C1+USB-C2:45W+20W=65W Max
USB-C1+USB-A:45W+18W=63W Max
USB-C2+USB-A:15W
USB-C1+USB-C2+USB-A:45W+15W=60W Max
SPECIFICATIONS
| Model | CH104 65W-2C+1A |
|---|---|
| Power | 65W |
| Port Configuration | 2 x USB-C + 1 x USB-A |
| Input | AC110-240V~50/60Hz,1.5A Max |
| Output | USB-C1/C2:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65Wmax) USB-A:5V/3A,5V/4.5A,9V/3A,12V/3A (36Wmax) USB-C1+USB-C2:45W+20W=65W Max USB-C1+USB-A:45W+18W=63W Max USB-C2+USB-A:15W USB-C1+USB-C2+USB-A:45W+15W=60W Max |
| Material | ABS+Fireproof PC |
| Dimensions | 31*45.5*104mm |
| Plug Type | EU / US / UK |
OEM / ODM OPTIONS
- OEM / ODM available
- Logo customization
- Packaging customization
APPLICATIONS
Suitable for branded accessory ranges, distribution portfolios, wholesale programs and retail product lines.
