Description
PRODUCT OVERVIEW

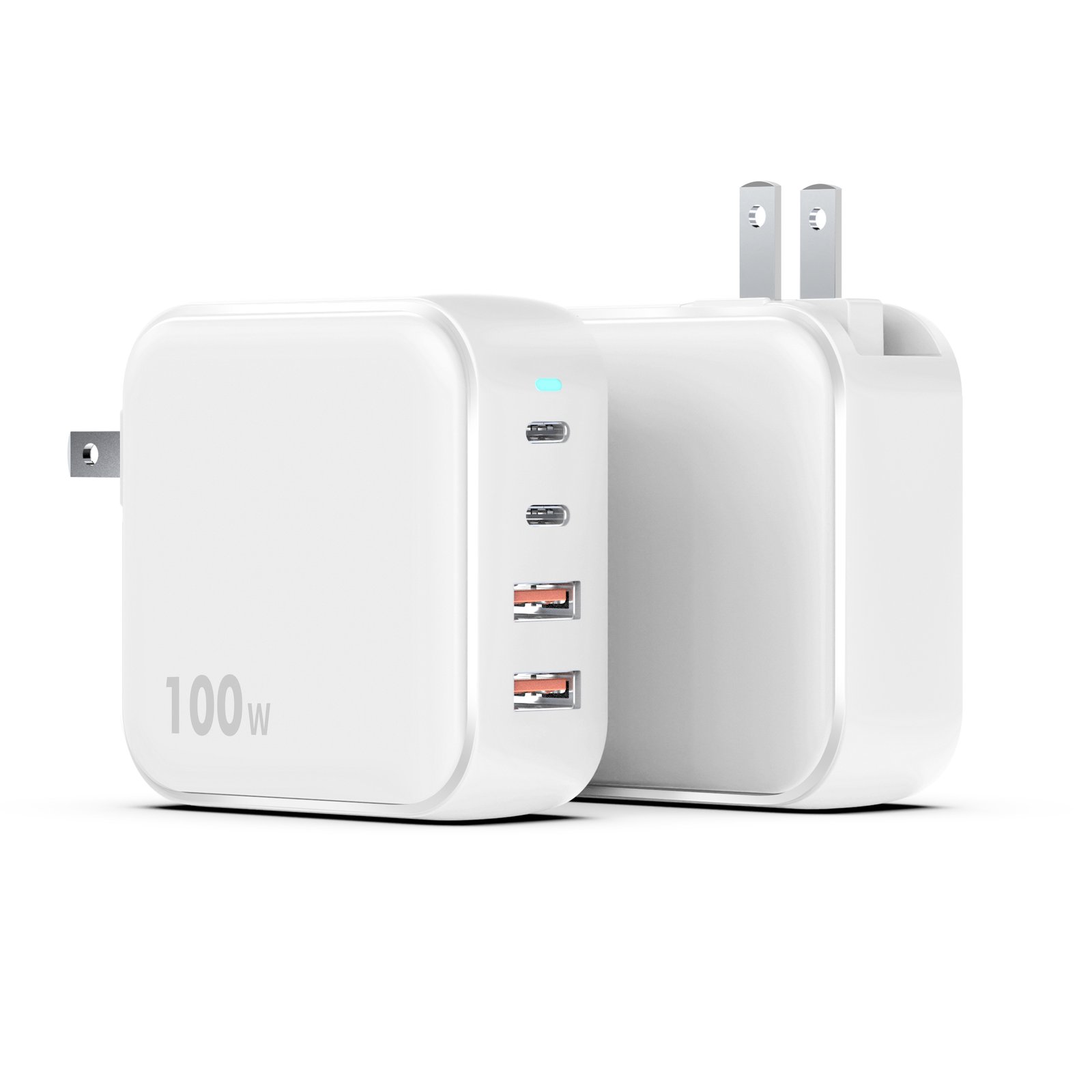

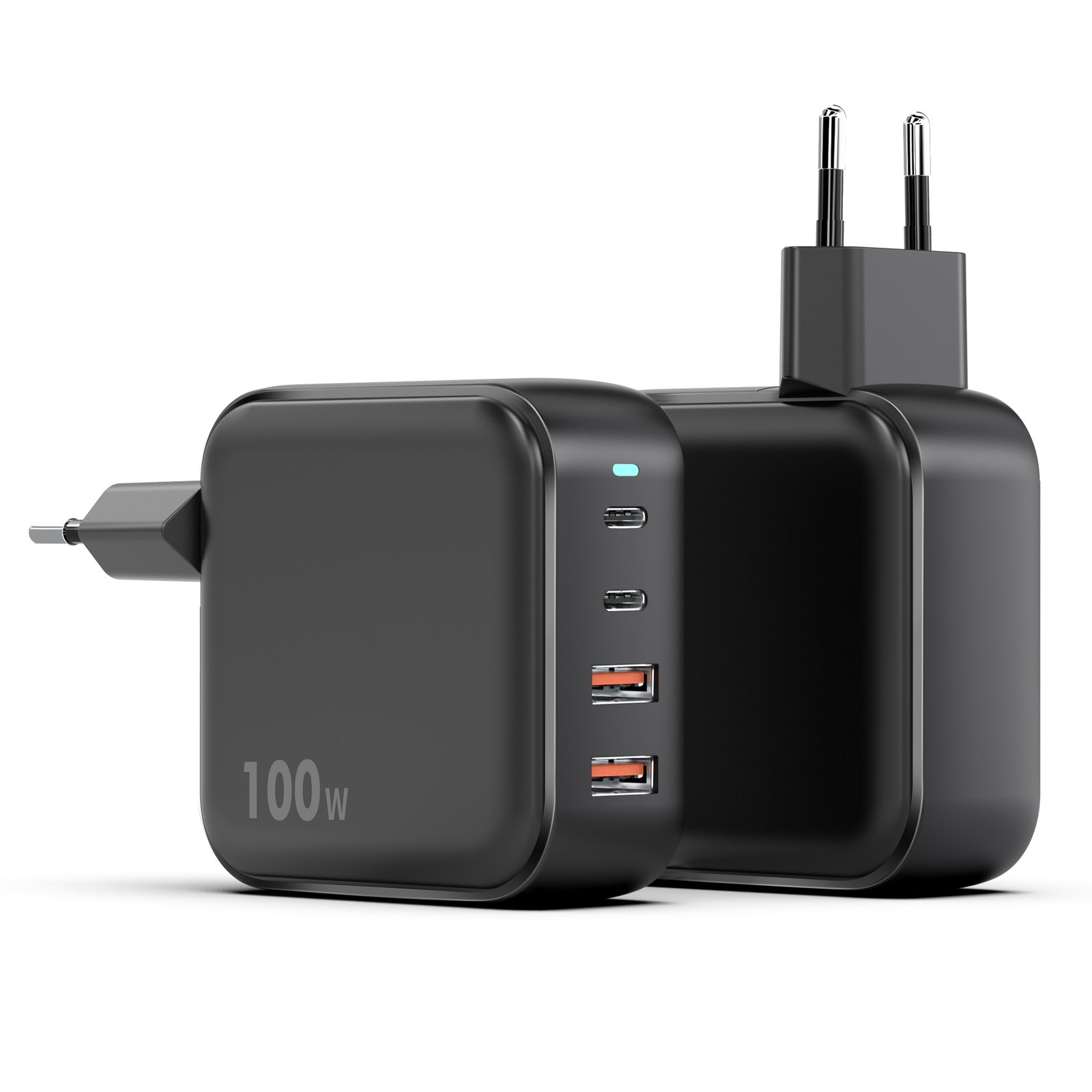

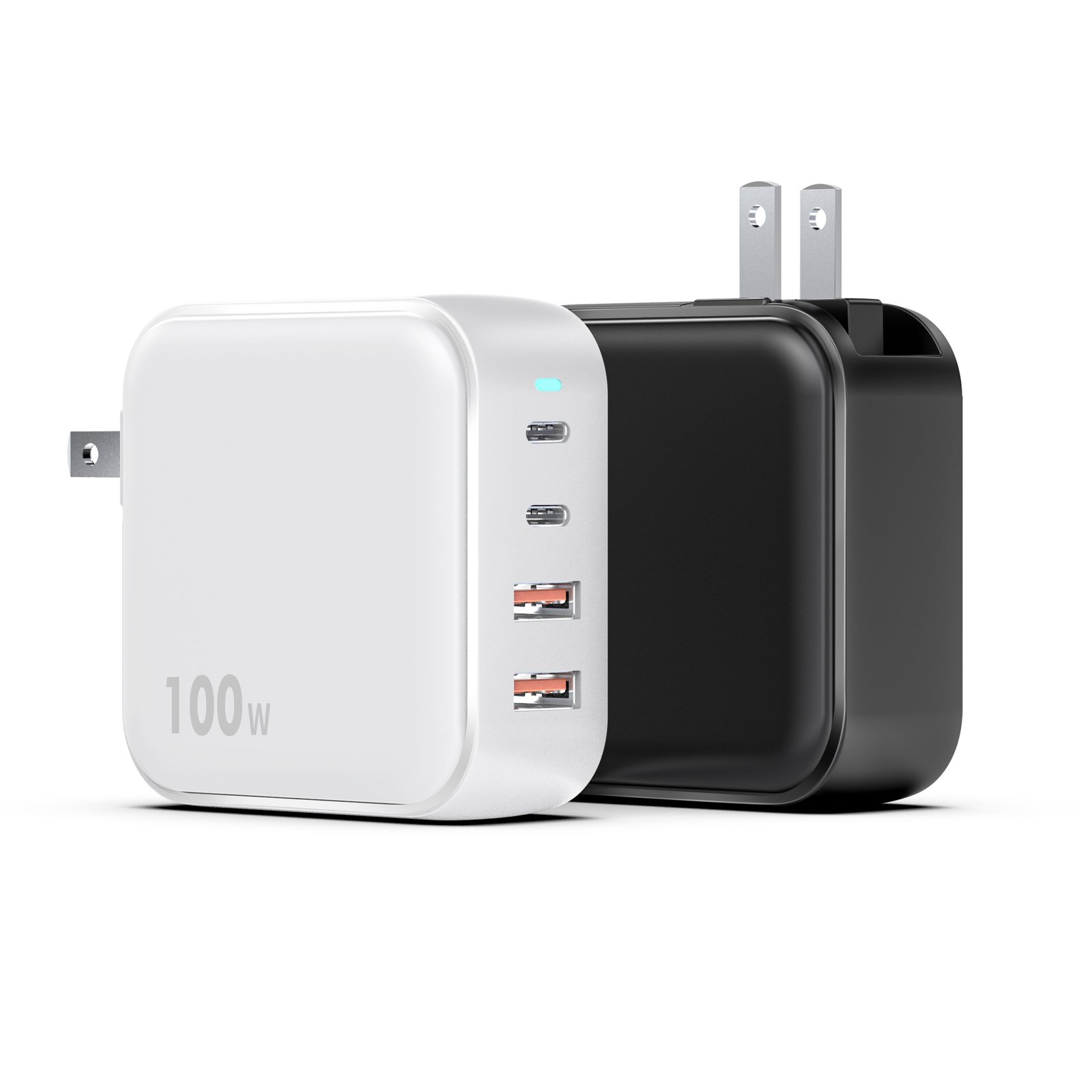

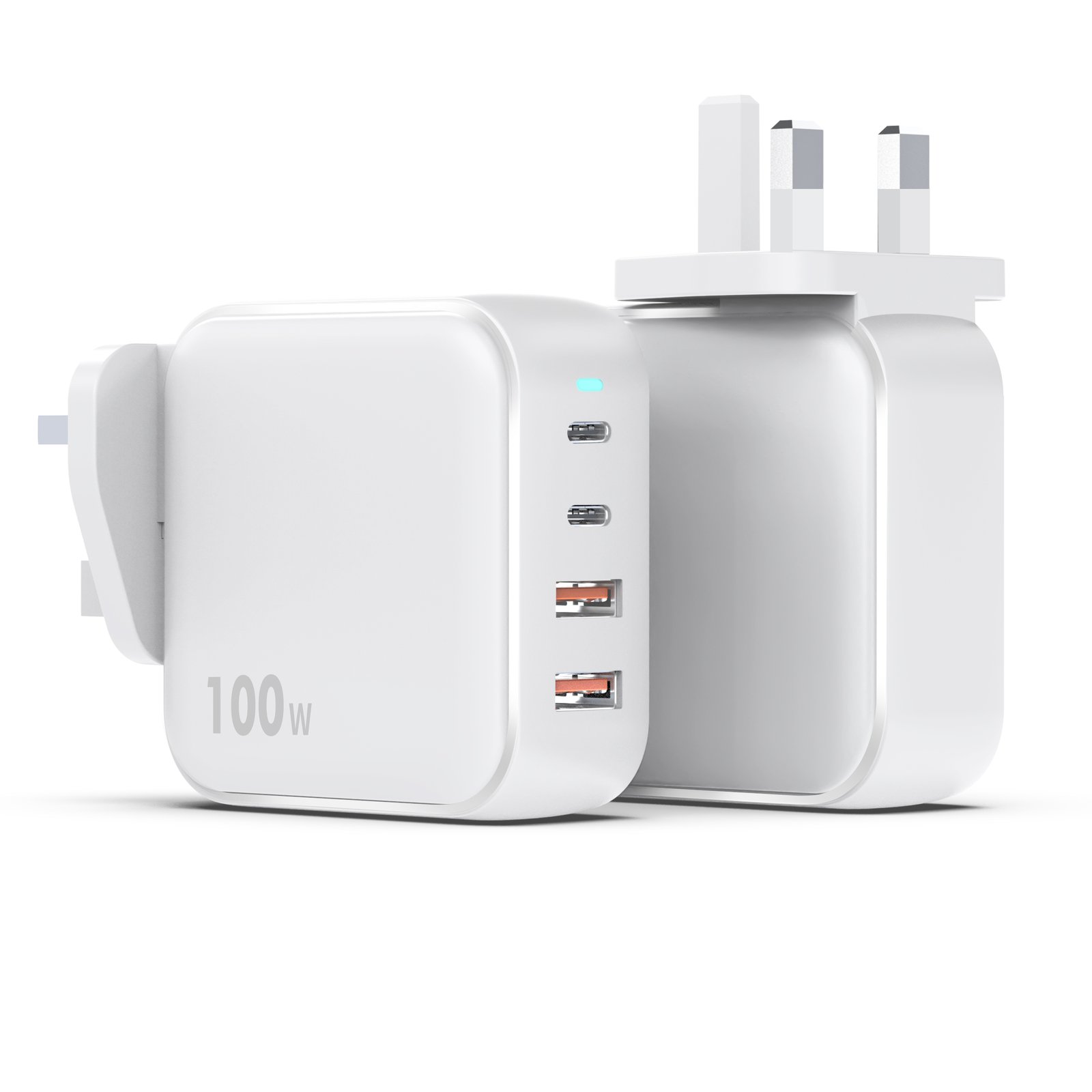

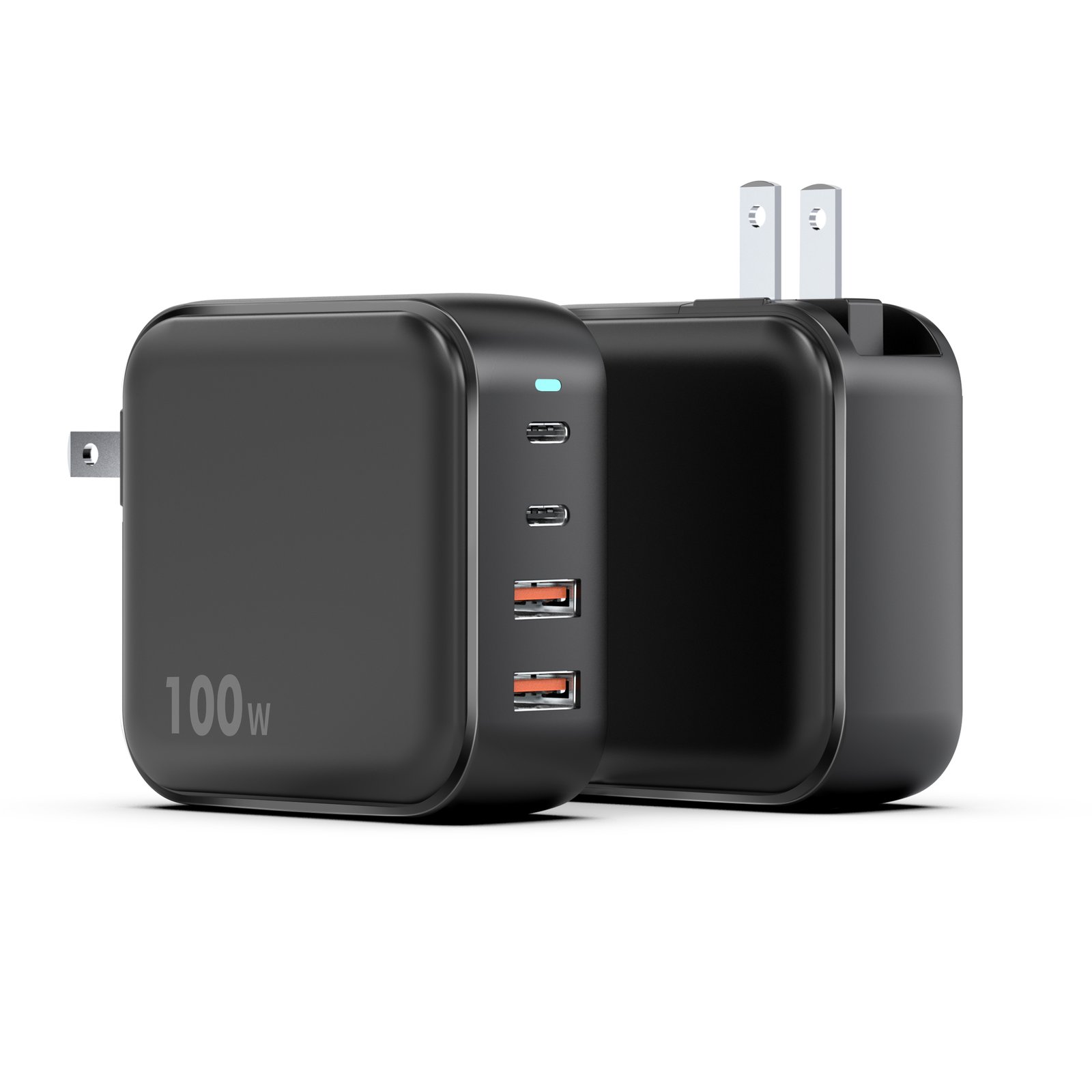

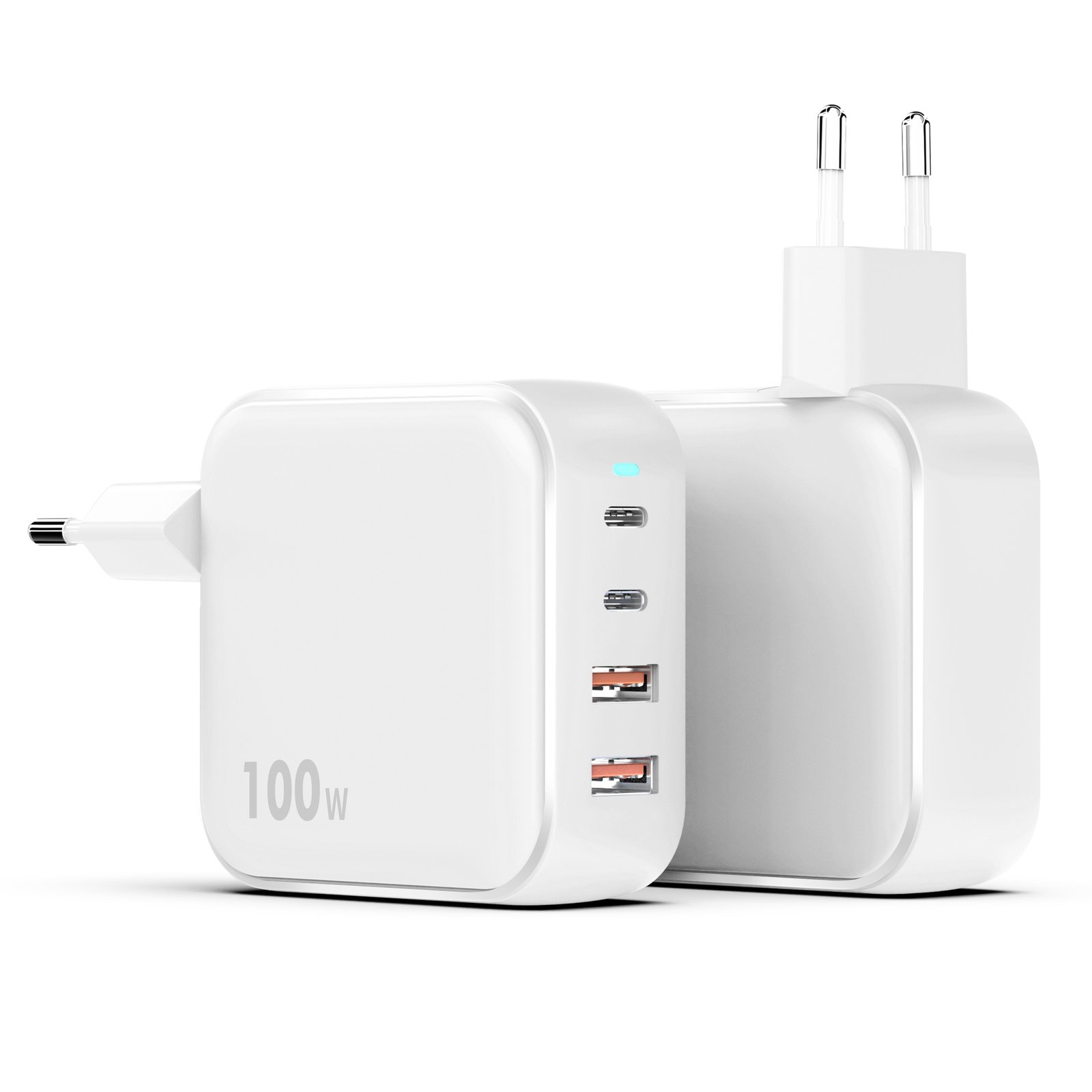

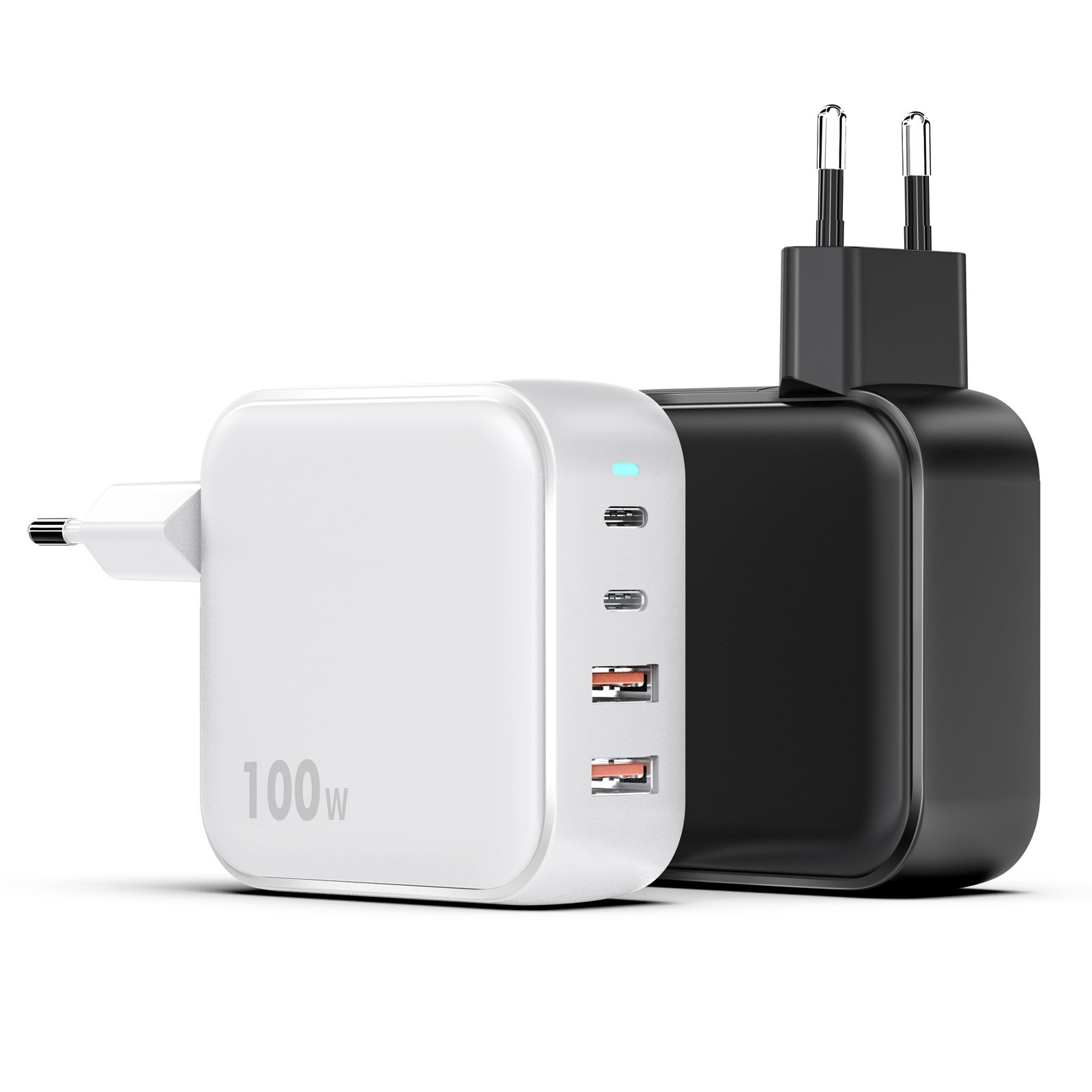

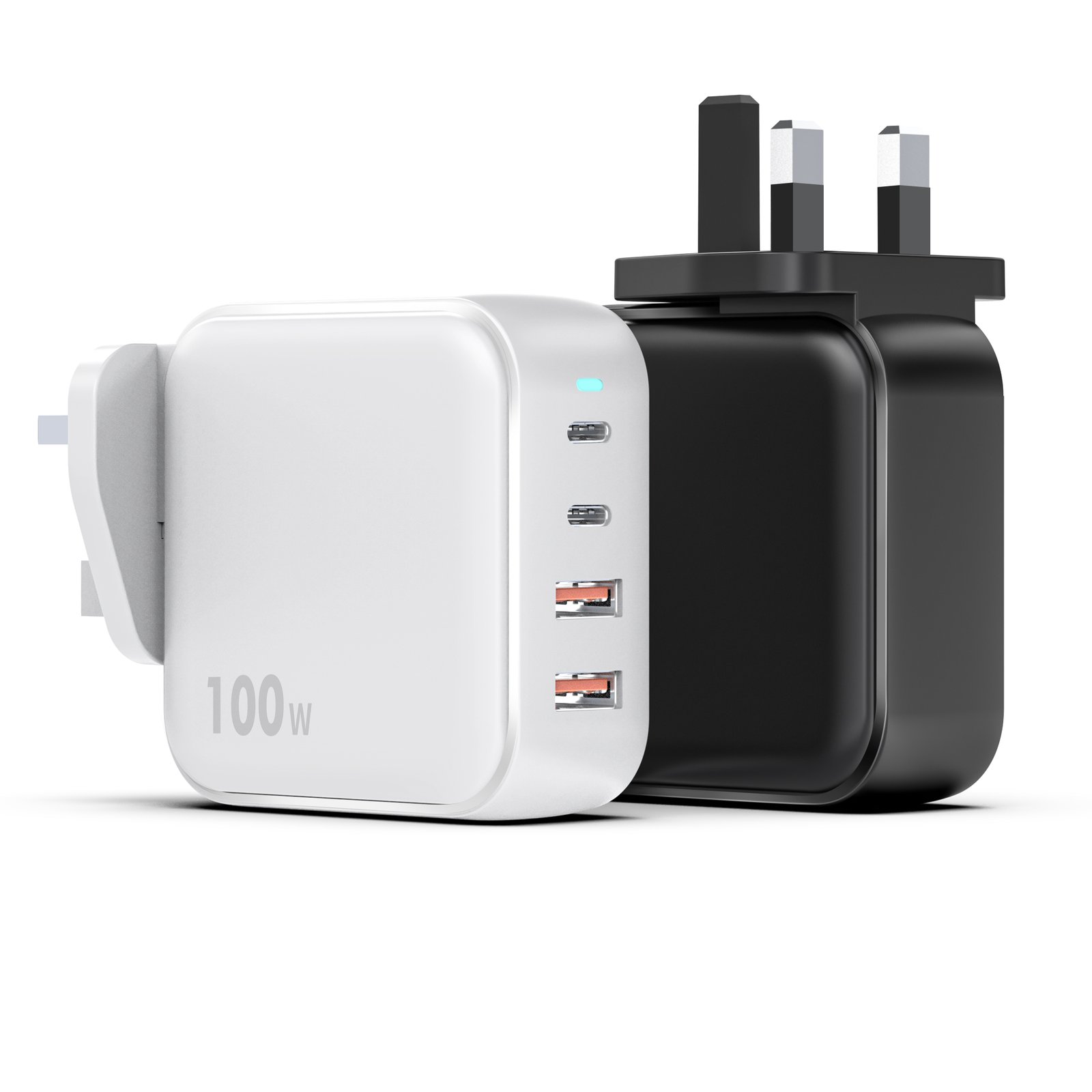

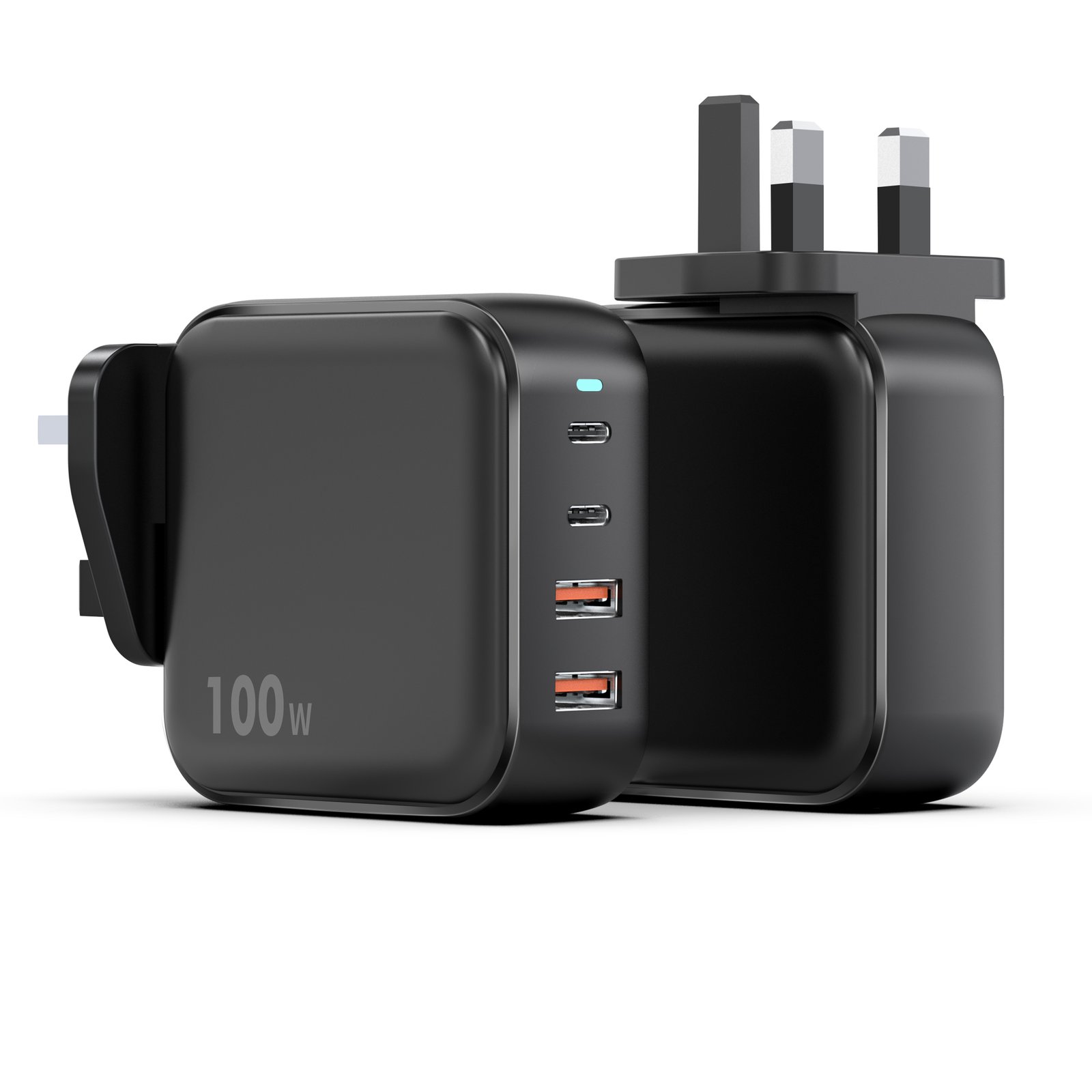

The CH102 100W-2C+2A is a wall charger for brands, importers, distributors, wholesalers and retail accessory programs. The specification below follows the supplied product data.
KEY FEATURES
- Power: 100W
- Port Configuration: 2 x USB-C + 2 x USB-A
- Input: AC110-240V~50/60Hz 2A Max
- Output: USB-C1/C2:5V/3A,9V/3A,12V/3A,15V/3A,
20V/5A(100W Max)
USB-A:4.5V/5.0A,5.0V/4.5A,9.0/3.0A,12V/3A,
20V/3A(60W Max)
USB-C1+USB-C2:65W+30w
USB-C2+USB-A:4.5V/5A(24W)
USB-C1+USB-A1:65W+30W(95W)
USB-C1+USB-A2:65W+30W(95W)
USB-C1+USB-A1+USB-A2:65W+15W+15W(95W)
USB-C2+USB-A1:15W+15W(30W)
USB-C2+USB-A2:15W+30W(45W)
USB-C1+USB-C2+USB-A1:65W+15W+15W
(95W)
USB-C1+USB-C2+USB-A2:65W+15W+15W(95W)
USB-C1+USB-C2+USB-A1+USB-A2:65W+10W+10W+10W(95W)
SPECIFICATIONS
| Model | CH102 100W-2C+2A |
|---|---|
| Power | 100W |
| Port Configuration | 2 x USB-C + 2 x USB-A |
| Input | AC110-240V~50/60Hz 2A Max |
| Output | USB-C1/C2:5V/3A,9V/3A,12V/3A,15V/3A, 20V/5A(100W Max) USB-A:4.5V/5.0A,5.0V/4.5A,9.0/3.0A,12V/3A, 20V/3A(60W Max) USB-C1+USB-C2:65W+30w USB-C2+USB-A:4.5V/5A(24W) USB-C1+USB-A1:65W+30W(95W) USB-C1+USB-A2:65W+30W(95W) USB-C1+USB-A1+USB-A2:65W+15W+15W(95W) USB-C2+USB-A1:15W+15W(30W) USB-C2+USB-A2:15W+30W(45W) USB-C1+USB-C2+USB-A1:65W+15W+15W (95W) USB-C1+USB-C2+USB-A2:65W+15W+15W(95W) USB-C1+USB-C2+USB-A1+USB-A2:65W+10W+10W+10W(95W) |
| Dimensions | 69.5*35.5*106.5mm |
| Plug Type | EU / US / UK |
OEM / ODM OPTIONS
- OEM / ODM available
- Logo customization
- Packaging customization
APPLICATIONS
Suitable for branded accessory ranges, distribution portfolios, wholesale programs and retail product lines.
